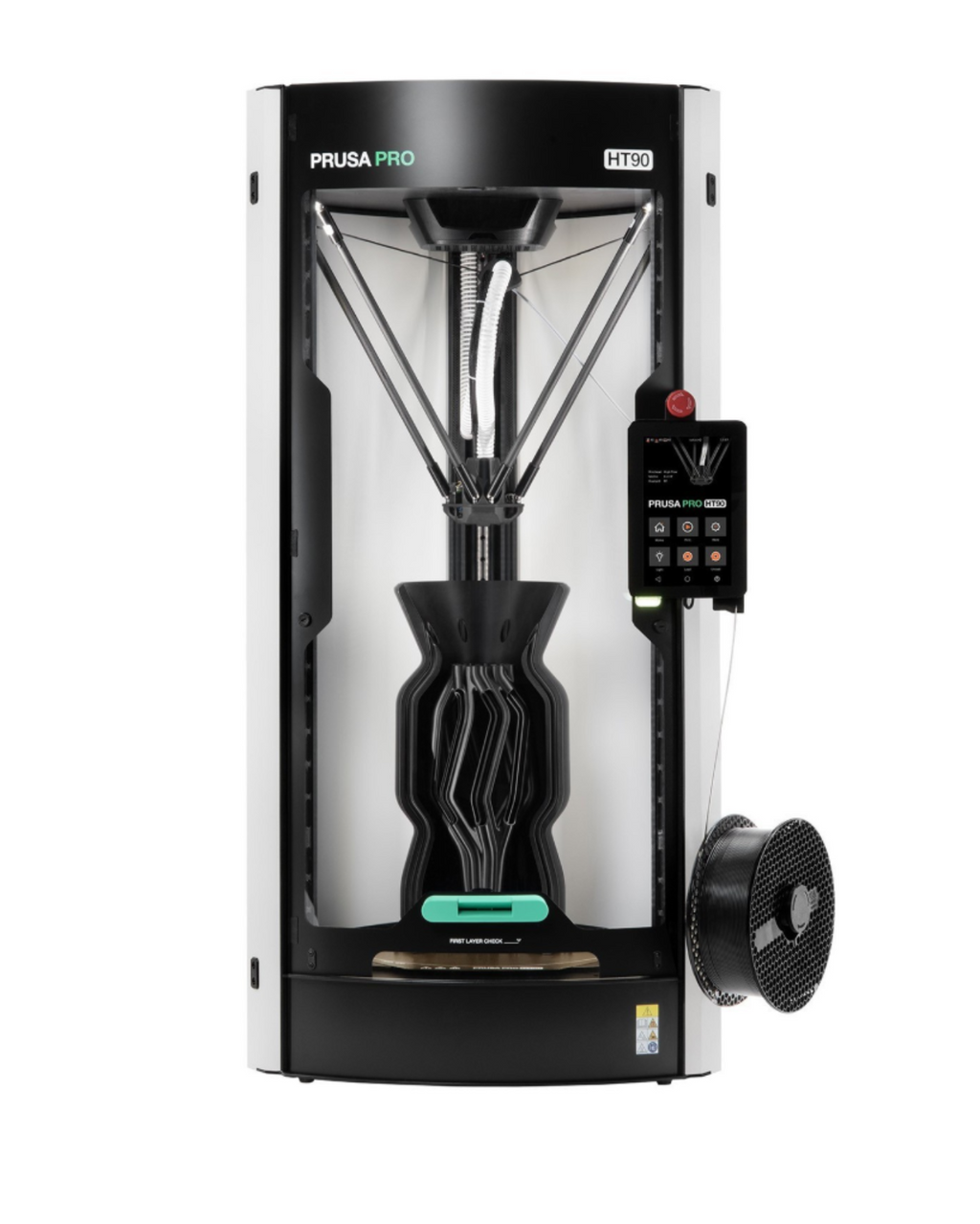

Prusa Pro HT90 3D Printer
Delivery is 10 to 14 days
The Prusa Pro HT90 is a delta kinematics 3D printer with a cylindrical print area (Ø300 × 400 mm). It is specifically designed to maximize the potential of advanced materials like ABS, ASA, PCCF and PA. Its heated chamber, which reaches up to 90 °C, and innovative cooling system, provide unparalleled layer adhesion and print quality.
With the HT90, you can print large objects without any warping, poor overhangs, or layer delamination. Additionally, the Input Shaper technology enables ultra-fast printing prototypes from PLA, PETG, and similar materials, all of them easily printable even with a closed chamber.
Equipped with a swappable print head featuring a high-temperature nozzle capable of reaching 500 °C, the HT90 also handles demanding materials like PEEK, PEKK, PPS, PSU, PES, PEI (Ultem) for small to medium-sized objects. This makes it the most affordable 3D printer for high-performance filaments. The built-in recirculation loop constantly purifies the air inside the chamber through a HEPA filter. Both the High-Flow and High-Temperature print heads are included in the package.The printer is easy to set up and configure, offering both a fully-featured offline operation for maximum security and a robust online print management system.
Technical Parameters
| Measurements | |
|---|---|
| Build Volume | Ø300 × 400 mm |
| Filament diameter | 1.75 mm |
| Layer height | 0.05-0.30 mm |
| Printer dimensions | |
| Width | 530 mm (without the filament holder) |
| Depth | 530 mm |
| Height | 1050 mm (1470 mm with the door opened) |
| Electronics | |
| Mainboard | 32-bit Duet control board |
| Software | Klipper control system, Input Shaper, Pressure Advance |
| Connectivity | Ethernet (RJ45), detachable Wi-Fi module, offline operation available |
| Surveillance | Built-in integrated camera and chamber lighting |
| Extruder | |
| Extruder | Swappable direct-drive print heads, quick-swap Revo nozzles 0.25 to 1.4mm diameter, 1.75mm filament compatible |
| Nozzle compatibility | All Revo nozzles are hardware compatible. Note that some Revo nozzles are not supported and may require creating a custom slicer profile. |
| Maximum filament flow | 40 mm³/s (ABS and 0.8mm nozzle) |
| Maximum speed | 600 mm/s |
| Maximum print speed | 250 mm/s |
| Acceleration | 20000 mm/s² |
| Max temperatures | |
| Operating temperature range | 20 °C - 32 °C |
| Maximal air humidity | 85 %, non-condensing |
| Max bed temperature | 155 °C |
| Max chamber temperature | up to 90 °C |
| Max nozzle temperature | 300 °C/500 °C |
| Cooling | |
| Cooling | Servo-operated high-speed flap for immediate airflow changes, high-pressure turbine |
| Supported materials | |
| High Temp Print head | PEI (Ultem), PEEK, PEKK, PPSU, PSU, PPS, PES and more. |
| High Flow Print head | PLA, ASA, PETG, FLEX (TPU, TPE), ABS, PA, PC, PCCF, PP and more |
| Power | |
| Power supply | 110V 15A / 230V 10A 50/60Hz |
| Calibration | |
| Calibration | Always-perfect first layer with Loadcell sensor, fully automatic calibration |
| Print surface | |
| Print pads | Textured PEI, Satin Powder-coated, PA steel sheet, PP Powder-coated, HighTemp Powder-coated - optionally available |
Basic package includes:
- Prusa PRO HT90 3D Printer
- Power cable
- Textured Powder-coated Print Sheet
- Wi-Fi adapter
- USB drive with sample print files
- Prusament ASA Jet Black 800g
- Alcohol-saturated wipes
- Side cutters
- High-flow print head
- High-temperature print head
- High-temperature nozzle exchange tool
- 3D Printing Handbook
- PTFE Lubricant
- Spare parts
- Filament holder
- Brass nozzle brush
