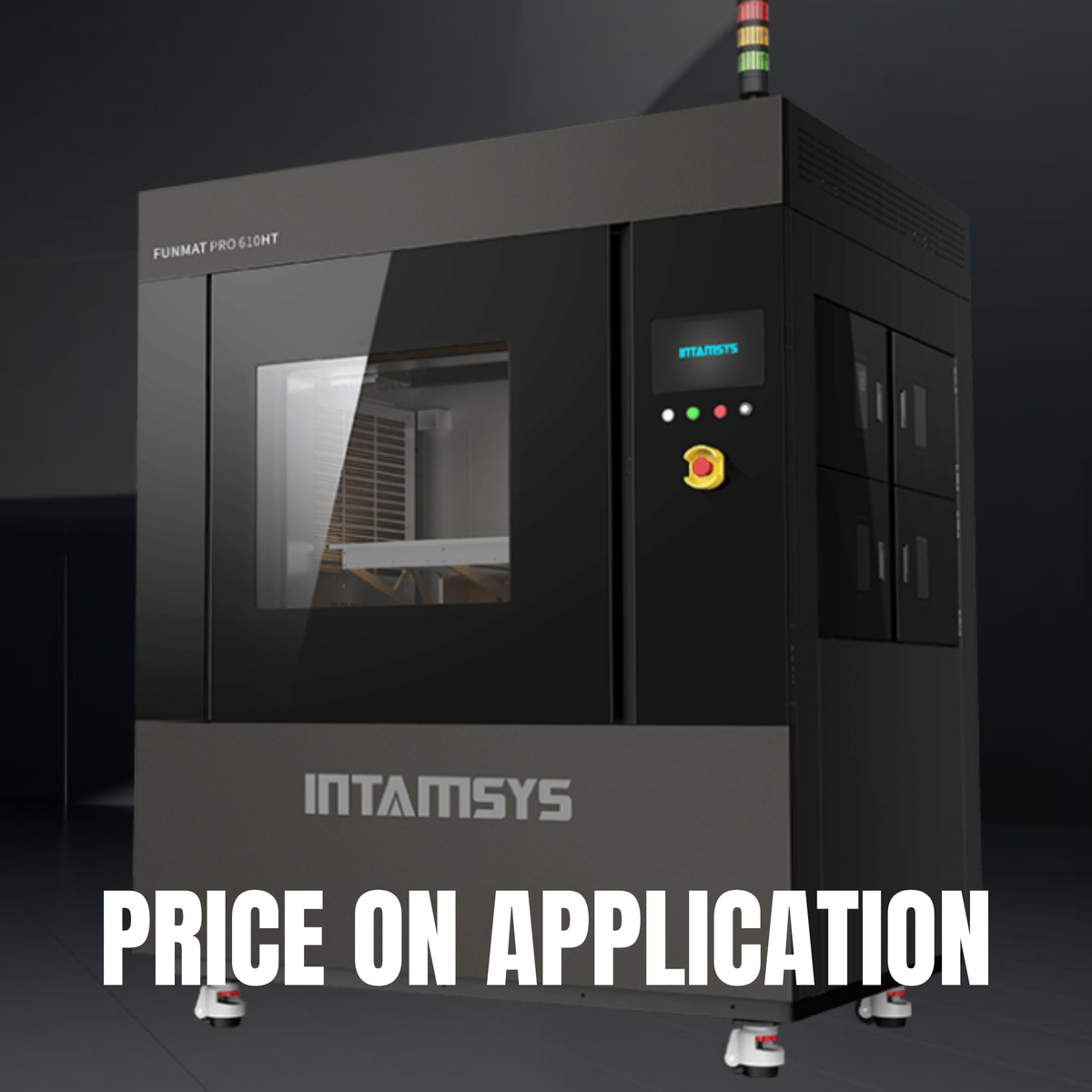

FUNMAT PRO 610HT

FUNMAT PRO 610HT

LARGE BUILD VOLUME INDUSTRIAL 3D PRINTER

FROM PEEK TO PEI, THE LARGE 3D PRINTER FOR HIGH-PERFORMANCE MATERIALS

With the advanced thermal design featuring high-temperature and high-speed extrusion control technology,
FUNMAT PRO 610HT has become the perfect choice for printing high-performance materials such as
PEEK, PEEK-CF, PEEK-GF, PEKK, PEI9085, PEI1010, and PPSU.

ADVANCED THERMAL DESIGN WITH UP TO 300°C HEATED CHAMBER

The high melting point of high-performance materials and its demanding requirements for high-temperature processing is a challenge for the 3D printing.

Equipped with a uniformly heated chamber that can reach up to 300°C and a dual extruder capable of reaching 500°C, the FUNMAT PRO 610HT can print nearly all high-performance thermoplastic materials available on the market, ensuring superior print quality and enhanced mechanical properties of the printed parts.
	In-depth research into material characteristics like PEEK, PEI, and PPSU, as well as rich experience in high-performance material process development to maximizes the properties of the materials.

LARGE SIZE PRINTING CAPABILITY

Due to its spacious build volume of 610 x 508 x 508 mm, the FUNMAT PRO 610HT enhances productivity by enabling the printing of larger parts without the need for assembly and allowing for the simultaneous production of multiple smaller parts.

Print Larger It offers higher strength, simplified post-processing, and is both time-saving and cost-effective.
	Print More Bolster productivity by printing multiple parts simultaneously, ensuring uniformity of material properties across all printed parts

SUPERIOR SURFACE FINISH OF COMPLEX GEOMETRIES WITH HIGH DIMENSIONAL ACCURACY

With a closed-loop servo control system and a high-precision ball screw drive system, the accuracy of movement positions is significantly enhanced (with XY axis precision at 12.5 µm and Z axis precision at 1.25 µm), ensuring remarkable surface finish at high printing speeds.
	Dual nozzles with support material solutions provide high-quality surface finishes on complex geometries.
Water-soluble Support Materials When printing complex geometries such as piping, where the support material is difficult to peel off manually, water-soluble materials can be used to support the structure and dissolve in water, ensuring perfect printing quality.
	Easy-to-Breakaway Support Material The dual extruder design makes removing the support material easy without worrying about the roughness of the contact surface caused by the peeling of the support material.

Unattended Operation Enhances Reliability, Minimises

Downtime, and Maximises Production Capacity.

 Intelligent design with auto-cleaning nozzles, filament auto-reloading, filament jam warning, and filament absence warning to ensure seamless continuous printing.

Equipped with a liquid-cooling system for enhanced heat dissipation, preventing filament jamming issues, and ensuring prolonged service life even under high-temperature conditions.

COMPATIBLE WITH OPEN-SOURCE FILAMENTS, OFFERING VERSATILITY AND COST-EFFECTIVENESS
	NEW SLICING SOFTWARE INTAMSUITE NEO Automated slicing for model design and repair. All-in-one collaborative additive manufacturing platform for online monitoring and print process optimisation.

 ROBUST SAFETY DESIGNED FOR HIGH-TEMPERATURE OPERATION

Incorporates a high-quality industrial safety control system with independent safety PLC, upgraded electromagnetic safety locks, and redundant safety sensors.

Designed based on EN60204 safety standards.

This ensures comprehensive safety protection with minimized risks during the whole printing process.
